Installation on AWS

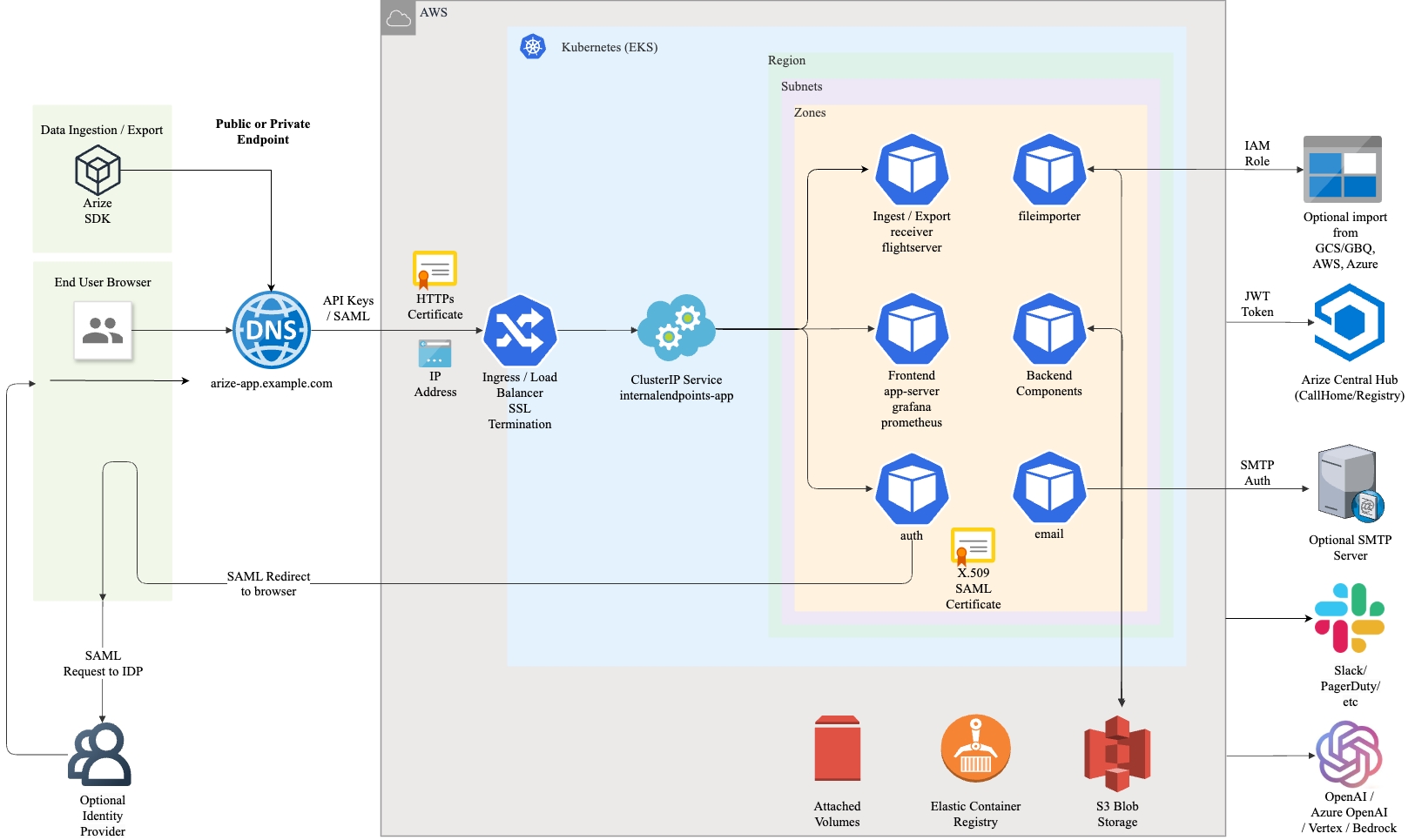

The diagram below depicts the target topology for AWS.

Requirements for AWS:

• Two S3 storage buckets for gazette and druid data.

• Buckets can be configured to use AES256, KMS, or no encryption.

• An EKS cluster with a minimum of two node pools: base pool and druid pool.

• The base node pool should be labeled with arize=true and arize-base=true.

• The druid node pool should be labeled with arize=true and druid-historical=true.

• Storage class gp2 is preferred and used by default. Storage class gp3 can also be used.

• An ECR or docker registry is optional as Arize pulls images from Arize AX's central image registry by default.

• Namespaces arize, arize-operator, and arize-spark can be pre-existing or created later by the helm chart.

• If deployed on a private VPC, these endpoints must be accessible from the cluster:

  • com.amazonaws..s3

  • com.amazonaws..ecr.api

  • com.amazonaws..ecr.dkr

  • com.amazonaws..ec2

  • com.amazonaws..elasticloadbalancing

  • com.amazonaws..sts

  • com.amazonaws..ebs

• An IAM role with the following policy actions on the Arize druid and gazette buckets:

  • s3:ListBucket

  • s3:*Object

  • kms:Encrypt

  • kms:Decrypt

  • kms:ReEncrypt*

  • kms:GenerateDataKey*

  • kms:DescribeKey

  • bedrock:InvokeModel

• If using IAM roles for service accounts (IRSA):

  • The roles must have a trust policy that allows these service accounts to assume the role:

    • system:serviceaccount:arize:*

    • system:serviceaccount:arize-spark:*

    • system:serviceaccount:arize-operator:*

• If not using IAM roles for service accounts (IRSA):

  • The policy actions should be added to the role attached to the nodes.

  • Pods should be able to discover the node role through instance metadata.

Contact Arize for the <sizing option> field. This field controls the size of the deployment and must align with the size of the cluster. Common values used would be small1b or medium2b.

values.yaml:

cloud: "aws"
clusterName: "arn:aws:eks:<region>:<account-id>:cluster/<cluster-name>"
hubJwt: "<JWT>" (base64 encoded)
gazetteBucket: "<name of gazette bucket>"
druidBucket: "<name of druid bucket>"
postgresPassword: "<user selected postgres password>" (base64 encoded)
organizationName: "<name of the organization or company>"
cipherKey: "<encryption key>" (base64 encoded)
clusterSizing: "<sizing option>"
region: "<region>"
serverSideEncryption: ""
collectNodeMetrics: true

# The URL used to reach the Arize UI once ingress endpoints are created
appBaseUrl: "https://<arize-app.domain>"

# Omit this field if using node level roles instead of IAM roles for service accounts (IRSA)
awsServiceAccountRoleRwBucket: "arn:aws:iam::<account-id>:role/<read-write-role>"

# Only required if using a private docker registry
pushRegistry: "<account-id>.dkr.ecr.<region>.amazonaws.com"
pullRegistry: "<account-id>.dkr.ecr.<region>.amazonaws.com"

# Only required if using a common node pool
historicalNodePoolEnabled: false

Choose an approach based on the deployment. For helm:

$ helm upgrade --install -f values.yaml arize-op arize-operator-chart.tgz
