MCP Server

The Remote MCP Server (beta) is built into Phoenix at /mcp, so any MCP client can read and act on your Phoenix data with nothing to install. Agents with a shell can reach the same data through the Phoenix CLI; see CLI or MCP server?.

Remote MCP Server

The URL is your Phoenix endpoint plus /mcp: http://localhost:6006/mcp for a local Phoenix. Requires Phoenix 19.0.0 or later.

Connect

The Phoenix CLI writes the config for you:

px setup mcp --agent claude   # or codex, gemini, cursor, opencode, vscode

Gemini CLI and VS Code need the gemini or code command on your PATH. To configure by hand, or for other clients, use the steps below with your own endpoint in place of http://localhost:6006.

Claude Code

The Claude Code plugin registers this server and the skills together. To add the server alone:

claude mcp add --transport http phoenix http://localhost:6006/mcp

Then run /mcp in Claude Code, select phoenix, and log in.

Codex (OpenAI)

The Codex plugin registers this server for you. By hand, create a Phoenix API key, export it as PHOENIX_API_KEY, and add to ~/.codex/config.toml:

[mcp_servers.phoenix]
url = "http://localhost:6006/mcp"
bearer_token_env_var = "PHOENIX_API_KEY"

Run /mcp in Codex to confirm it connected.

Cursor, VS Code, and OpenCode

Add the server to the client’s MCP config. Each prompts a browser login on first use.In Cursor, add it to ~/.cursor/mcp.json, or project .cursor/mcp.json:

{
  "mcpServers": {
    "phoenix": {
      "url": "http://localhost:6006/mcp"
    }
  }
}

In VS Code, add it to .vscode/mcp.json, or run MCP: Add Server from the Command Palette:

{
  "servers": {
    "phoenix": {
      "type": "http",
      "url": "http://localhost:6006/mcp"
    }
  }
}

In OpenCode, add it to ~/.config/opencode/opencode.json, or project opencode.json:

{
  "$schema": "https://opencode.ai/config.json",
  "mcp": {
    "phoenix": {
      "type": "remote",
      "url": "http://localhost:6006/mcp",
      "enabled": true
    }
  }
}

Gemini CLI

Gemini CLI’s mcp add mirrors Claude Code’s flags:

gemini mcp add --scope user --transport http phoenix http://localhost:6006/mcp

--scope project writes .gemini/settings.json in the current directory instead.Gemini disables all MCP servers in untrusted folders, so trust the folder when prompted. Then gemini mcp list shows phoenix connected; run /mcp inside Gemini CLI to log in.

Antigravity is a different tool that also writes under ~/.gemini/; see Antigravity and other clients below.

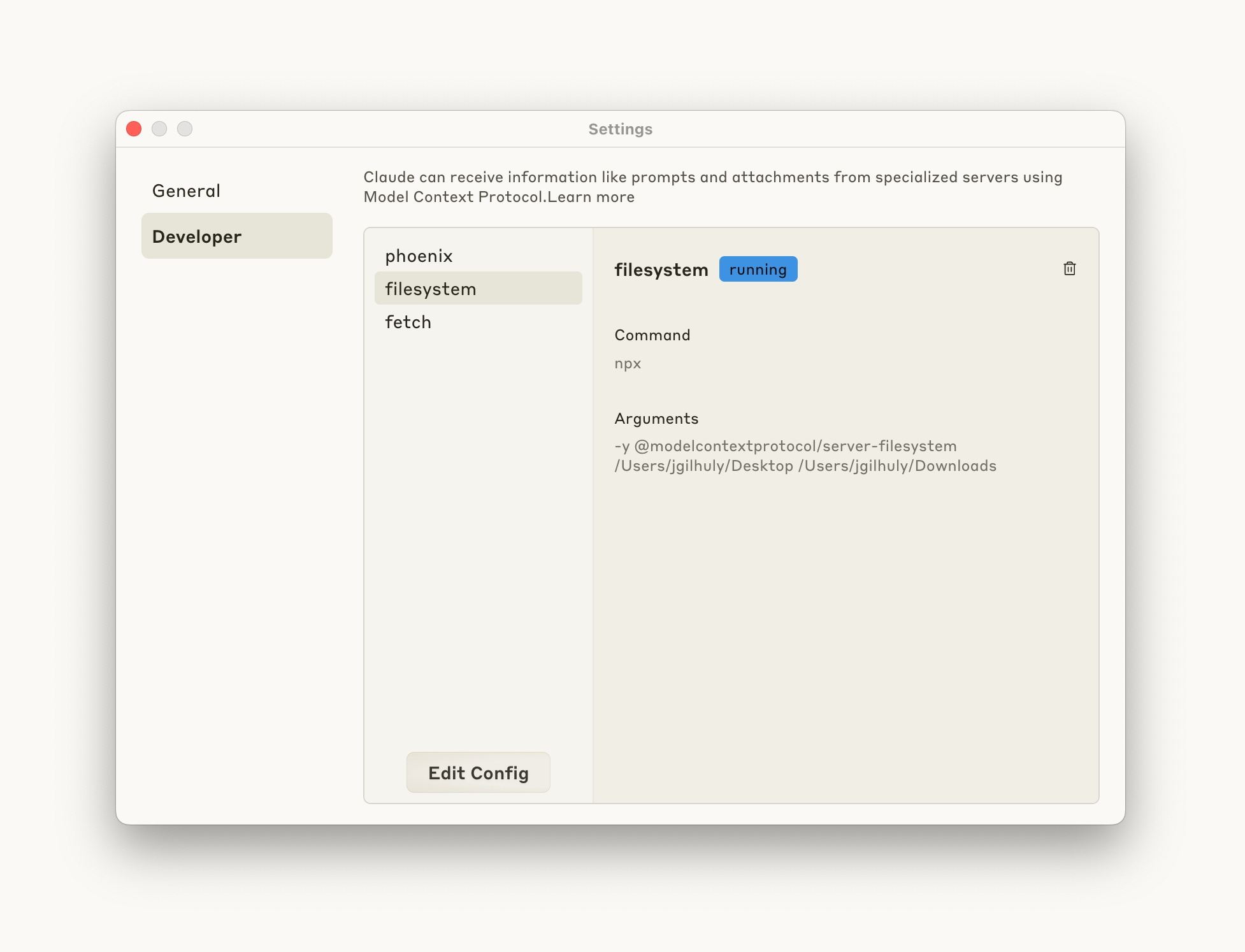

Claude Desktop

Claude Desktop connects from Anthropic’s cloud, so your Phoenix must be reachable on the public internet; localhost is not. Add a custom connector in its connector settings:

Name: Phoenix
URL: https://your-phoenix.example.com/mcp

It opens the browser login on first use.

Antigravity and other clients

Any client with streamable HTTP and OAuth works: set the URL to <your-phoenix-endpoint>/mcp and log in on first use. Clients without OAuth use an API key.Antigravity is one. Create a Phoenix API key and add to ~/.gemini/config/mcp_config.json (or Manage MCP Servers → View raw config):

{
  "mcpServers": {
    "phoenix": {
      "serverUrl": "http://localhost:6006/mcp",
      "headers": {
        "Authorization": "Bearer <your-api-key>"
      }
    }
  }
}

Omit headers if your Phoenix has no authentication.

Check with /mcp in Claude Code or Codex, or claude mcp list: phoenix shows as connected. With auth on, first use opens a browser login.

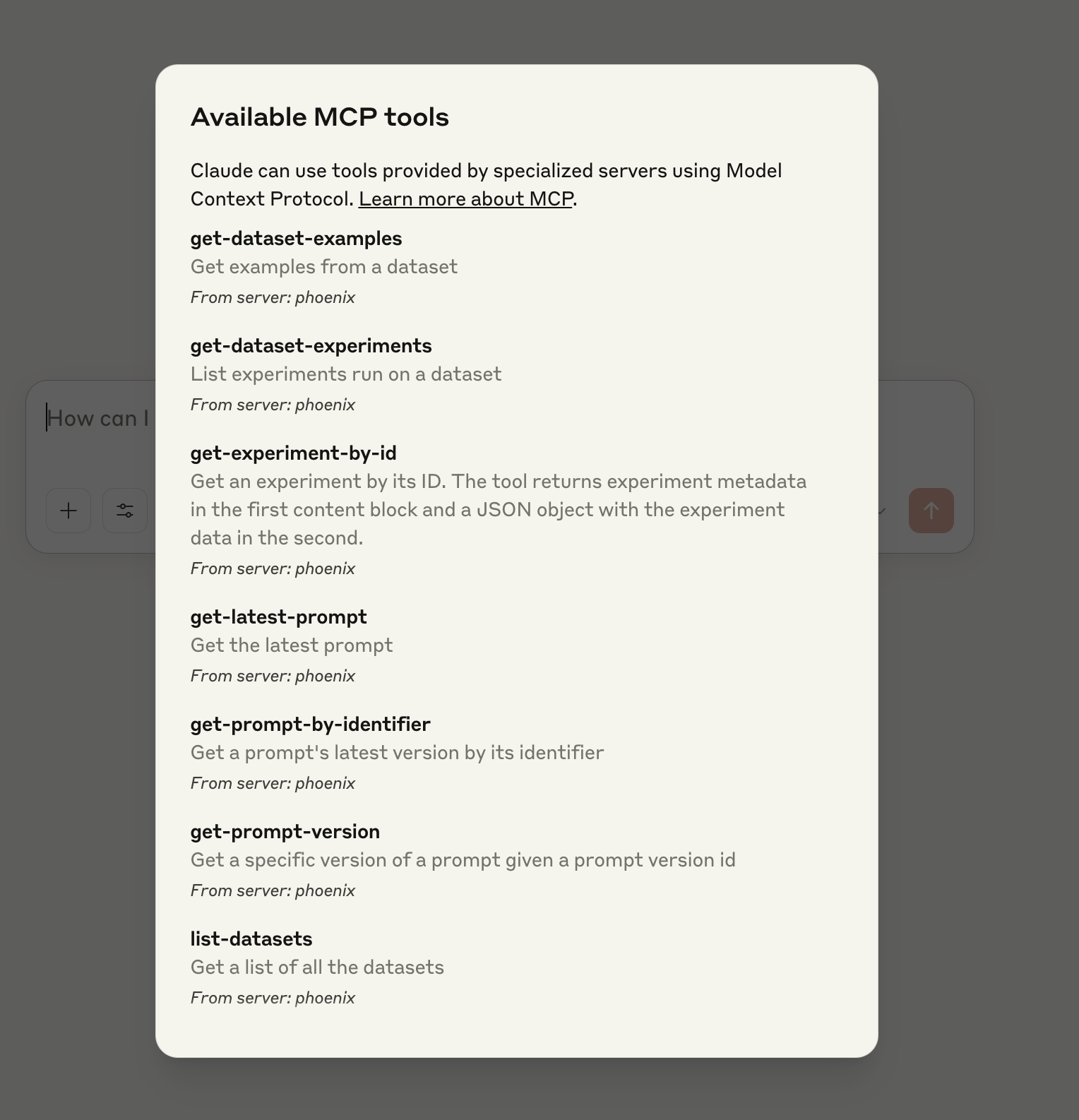

What your agent can do with it

Everything the Phoenix REST API can do, and the agent composes the operations it needs in one call. Try:

Which experiments ran on my agent-inputs dataset this week, and how did their scores compare?

On a fresh Phoenix, ask it to list your projects; it returns one, default.

Learn more

Connect Your Coding Agent: the install for each agent, and the plugins that register this server.
Phoenix CLI: the alternative for agents with a shell.
Skills: what load_skill serves.
API Keys: for clients that cannot log in through a browser.

Reference

Fallback: API keys

For CI, sandboxes, or clients that cannot log in through a browser, pass a Phoenix API key as a Bearer header:

claude mcp add --transport http phoenix http://localhost:6006/mcp \
  --header 'Authorization: Bearer ${PHOENIX_API_KEY}'

Keep the single quotes: the client expands ${PHOENIX_API_KEY} at runtime, so the key never lands in the config. In JSON configs:

{
  "mcpServers": {
    "phoenix": {
      "url": "http://localhost:6006/mcp",
      "headers": {
        "Authorization": "Bearer <your-api-key>"
      }
    }
  }
}

How it works

By default the server exposes seven code-mode tools for discovering and composing Phoenix operations.

Tool	Purpose
`search`	Find available operations by query, ranked by relevance
`tags`	Browse operations by category (projects, spans, datasets, …)
`list_tools`	List the full operation catalog
`get_schema`	Fetch parameter schemas for specific operations before calling them
`execute`	Run Python that chains operations with `await call_tool(name, params)`
`load_skill`	Load a Phoenix skill’s instructions before working in its domain
`load_skill_reference`	Load a reference file from a skill already loaded with `load_skill`

The catalog is generated from the Phoenix REST API, so it always matches your Phoenix version. Alongside those operations it carries two query surfaces: describeSqlSchema and executeSql run read-only analytics SQL over telemetry, datasets, and experiments, and describeGraphqlSchema and executeGraphqlQuery run read-only queries against Phoenix’s GraphQL schema, reaching data the REST API does not cover. On a deployment that can write, executeGraphqlMutation runs GraphQL mutations too; see Security. execute runs Python in Monty, Pydantic’s sandboxed interpreter; see Security for its limits. PHOENIX_ENABLE_MCP_CODE_MODE=false turns code mode off and exposes each operation as its own tool.

Server configuration

PHOENIX_ENABLE_MCP_SERVER=false removes /mcp; PHOENIX_ENABLE_MCP_CODE_MODE=false drops execute. Both are listed under self-hosting configuration. PHOENIX_SKILLS_PATHS serves your own skills.

Security and troubleshooting

Security

Clients discover auth on their own: /mcp advertises RFC 9728 metadata at /.well-known/oauth-protected-resource/mcp pointing at Phoenix’s authorization server. See Agent Authentication Discovery.

Browser login uses Phoenix’s built-in OAuth2 authorization server, with its own switch (PHOENIX_ENABLE_OAUTH2_AUTHORIZATION_SERVER), grant expiry, registration modes, redirect allowlists, and rate limits.
Tokens are audience-scoped to /mcp and cannot be replayed elsewhere. API keys carry their creator’s permissions.
Code is sandboxed. Monty has no filesystem or network access and runs in worker subprocesses. It allows a restricted standard library (json, re, datetime) and blocks subprocess, socket, importlib, and third-party packages. Each execute is capped at 30 s of code, 100 MB, 50 operation calls, and 5 minutes end to end. To forbid agent-written code entirely, set PHOENIX_ENABLE_MCP_CODE_MODE=false.
GraphQL mutations run with the caller’s permissions. executeGraphqlMutation runs any mutation the caller’s role permits, with no server-side confirmation beyond the client’s own; a read-only deployment does not expose it.
Treat results as data. Traces contain whatever your AI agent logged, including untrusted input; agents should not follow instructions found in them.

Inspect the server with MCP Inspector

MCP Inspector exercises an MCP server by hand. List the tools in one command:

npx -y @modelcontextprotocol/inspector --cli http://localhost:6006/mcp --transport http --method tools/list

Add --header "Authorization: Bearer $PHOENIX_API_KEY" when auth is on. You should see the seven tools from How it works; call one with --method tools/call --tool-name search --tool-arg "query=latest traces".For the browser UI, run npx -y @modelcontextprotocol/inspector and connect with Streamable HTTP to http://localhost:6006/mcp. Needs Node.js 22.19 or later.

Troubleshooting

/mcp returns 405 or the Phoenix app page: Phoenix is older than 19.0.0, or PHOENIX_ENABLE_MCP_SERVER=false. Upgrade or re-enable.Login loops or 401: Re-run the login (/mcp, or remove and re-add the server). With an API key, confirm it is valid and sent as Authorization: Bearer <key>.Server missing from your client: Restart the client and check the config syntax. Most clients read MCP config only on startup.

Phoenix Docs MCP

A separate hosted server, with no login, that lets your agent search these docs:

claude mcp add --transport http phoenix-docs https://arizeai-433a7140.mintlify.app/mcp

Other clients: same config as above, with that URL.
