Qdrant

Qdrant is an open-source vector search engine. This guide instruments a staged Qdrant hybrid search with Phoenix and OpenTelemetry so you can see which stage of the search to fix when results look wrong. You index 200 AG News documents in Qdrant Cloud with dense and sparse vectors via Qdrant Cloud Inference. Then you run hybrid retrieval and send a trace tree to Phoenix. The tree shows what Qdrant returned and what your code kept.

Why Trace Hybrid Search

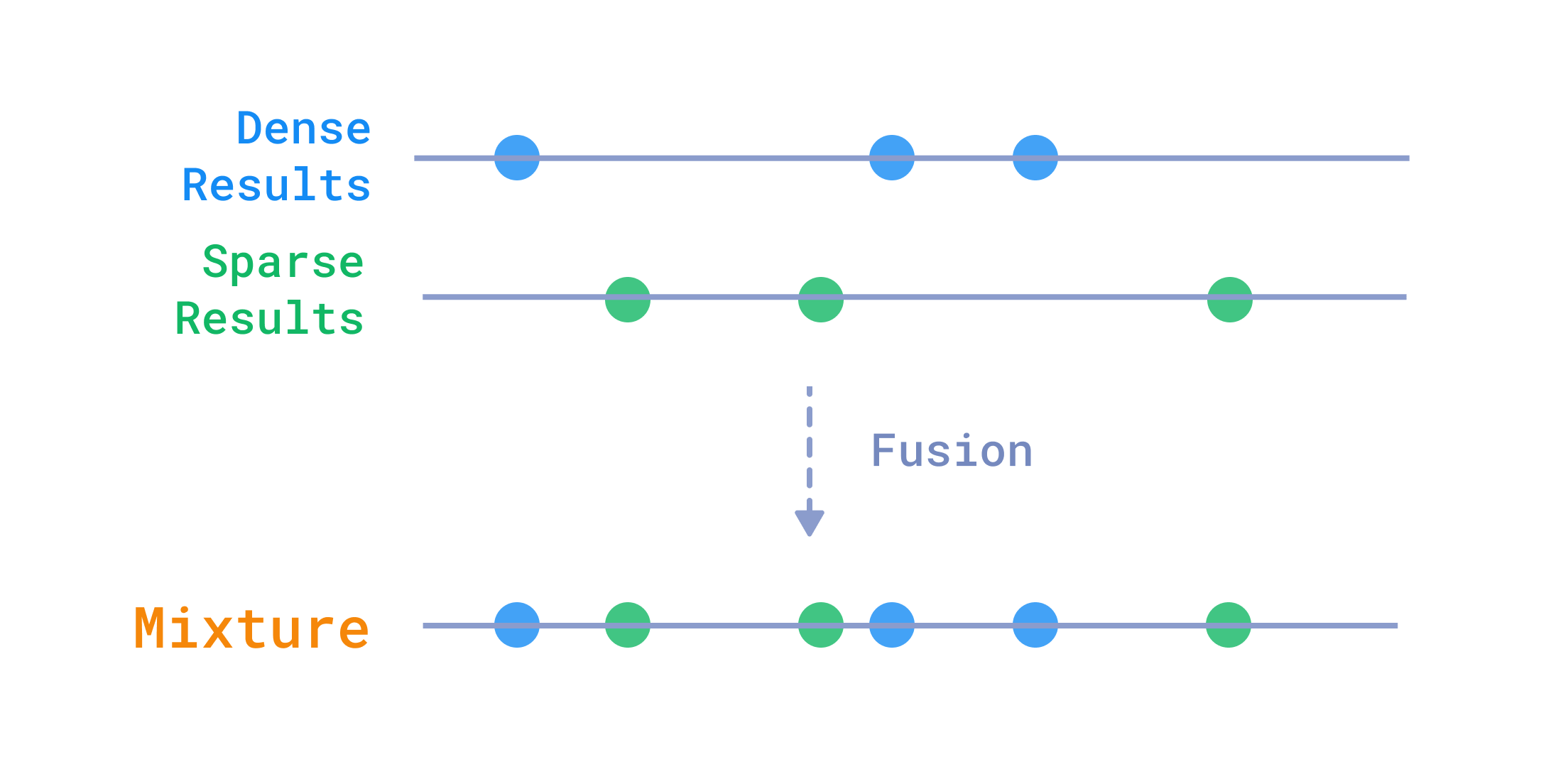

Hybrid search does not always make results more relevant. It helps when dense and sparse retrieval complement each other, and only when they are tuned well. Qdrant returns a fused set of candidates, and your code then selects the final results. Without observability, both stages look like one call. Hybrid search runs two queries and merges them into one ranking. A dense query matches documents by meaning. A sparse query matches documents by exact words. Qdrant fuses the two lists with Reciprocal Rank Fusion (RRF). When a document appears near the top of either list, it ranks higher.

The fused list is the candidate set that this guide traces.

One Search, Two Stages

A hybrid search makes two decisions that usually run as one block of code:

Retrieval. Qdrant fuses the dense and sparse results and returns a candidate set (candidate_limit documents).
Selection. Your code keeps a smaller slice (result_limit documents), or reranks and filters them.

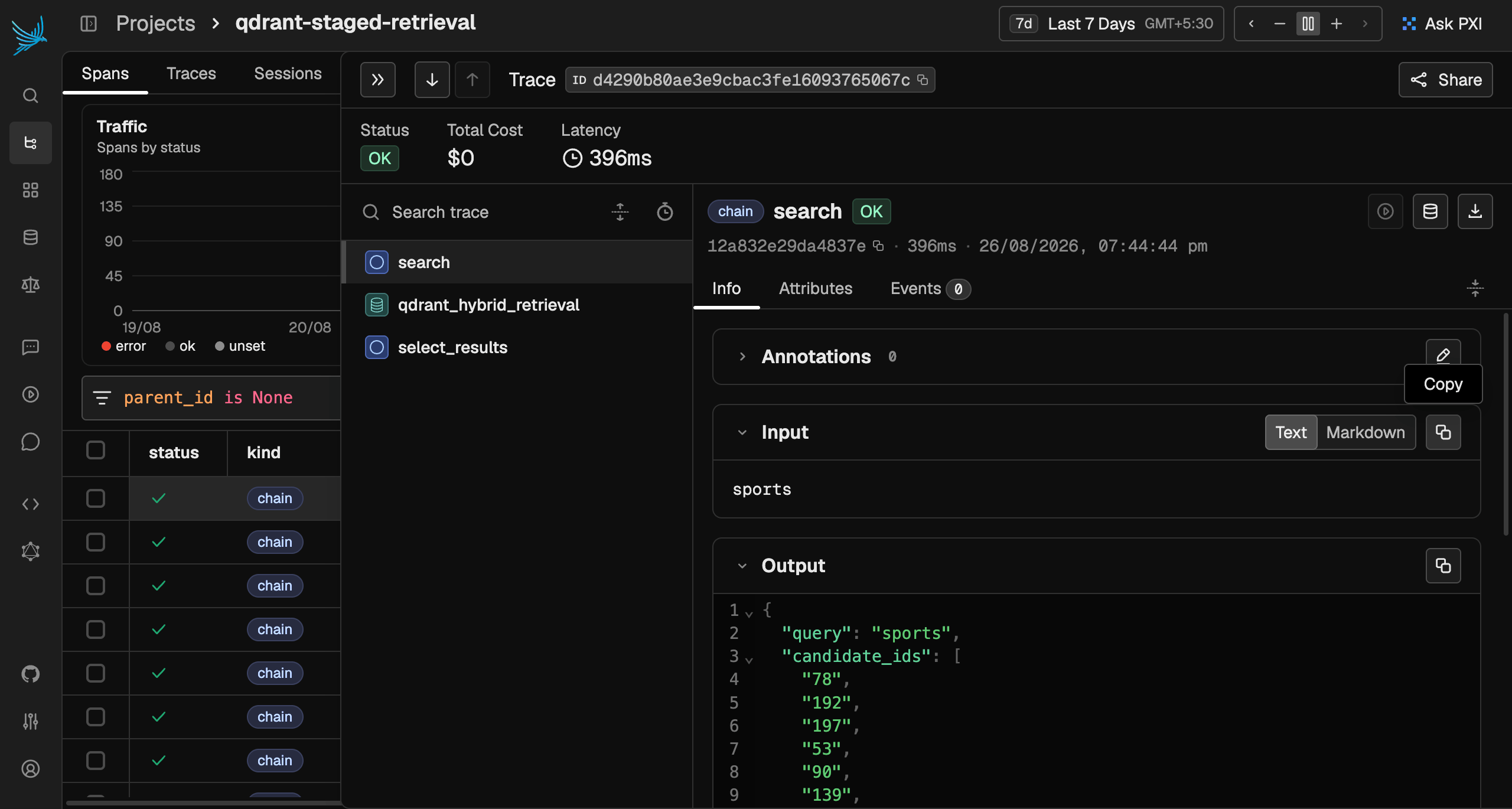

When the final answer is wrong, the fault can sit in either stage. Qdrant can fail to return the right document, or your selection logic can drop it after Qdrant returns it. In a single log line or one Qdrant call, the two failures look the same. Each search in this guide emits three nested spans:

search
|- qdrant_hybrid_retrieval
`- select_results

qdrant_hybrid_retrieval records what Qdrant returned. select_results records what your code kept. Compare the document IDs of the two spans to find the stage to fix.

Qdrant’s Query API returns only the final fused results, not the raw dense and sparse prefetch candidates. This guide traces the stages you can observe: the fused candidates and the final selected results.

Prerequisites

Qdrant Cloud with Cloud Inference

This guide uses Qdrant Cloud Inference so you don’t need a local embedding server. Create a Qdrant Cloud cluster and enable Cloud Inference. Once the cluster is ready, store the URL and API key as environment variables:

export QDRANT_URL="https://your-cluster.cloud.qdrant.io"
export QDRANT_API_KEY="your-api-key"

Install

Install Python 3.11 or later, then install the packages:

pip install arize-phoenix-otel datasets qdrant-client

Launch Phoenix

Start Phoenix in a separate terminal:

docker run --rm -p 6006:6006 arizephoenix/phoenix:latest

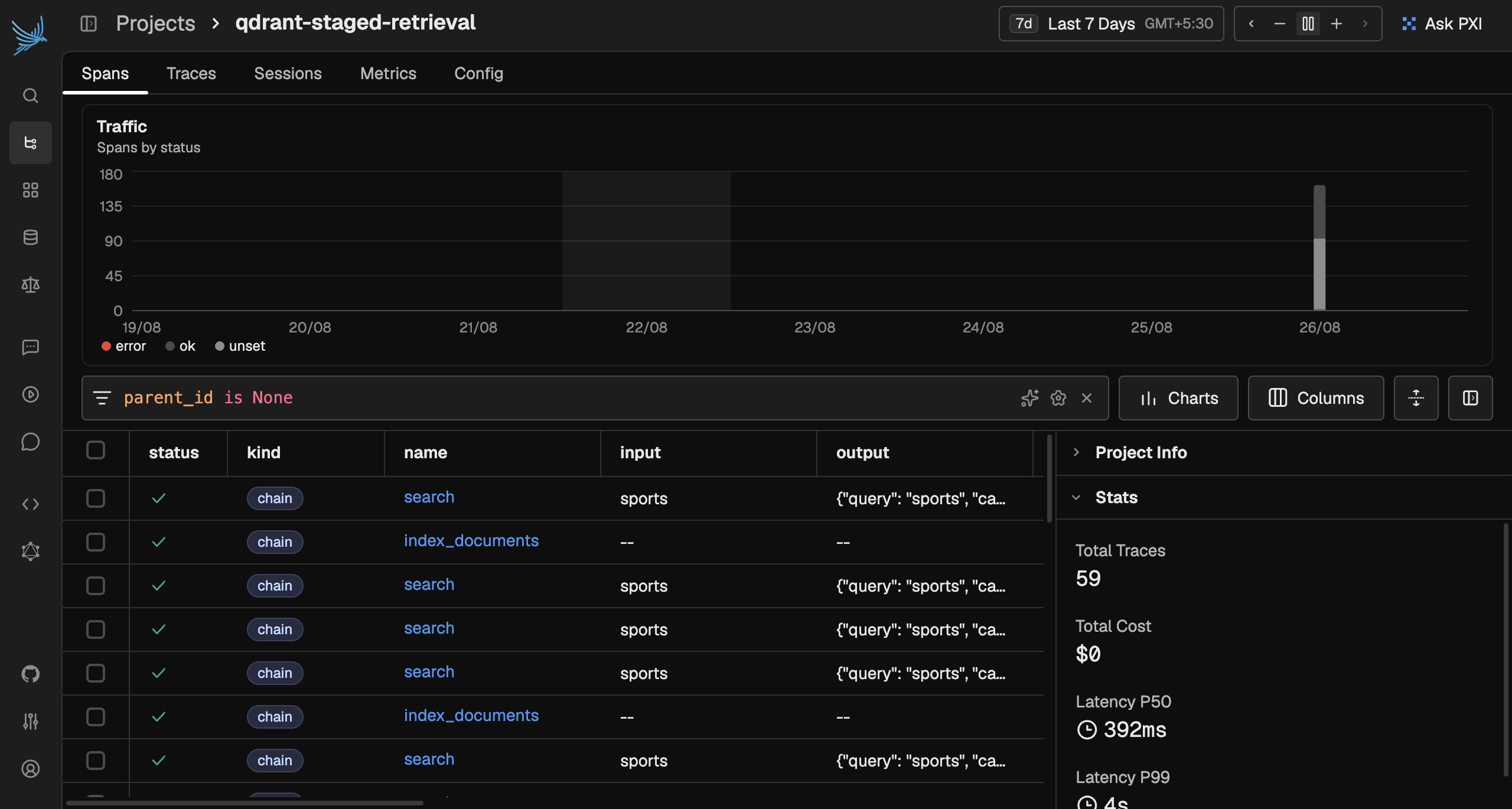

Open the UI at http://localhost:6006. The script exports OTLP traces to http://localhost:6006/v1/traces.

Implementation

The full script is at the end of this section.

Set Up Tracing and Constants

Define the collection and the inference models. All spans use OpenInference attributes so Phoenix renders them the same way.

import json
import os

from openinference.semconv.trace import OpenInferenceSpanKindValues, SpanAttributes
from phoenix.otel import register
from qdrant_client import QdrantClient

COLLECTION = "ag-news-hybrid-tracing"
EMBEDDING_MODEL = "sentence-transformers/all-MiniLM-L6-v2"
SPARSE_MODEL = "Qdrant/bm25"
EMBEDDING_DIMENSION = 384
PROJECT_NAME = "qdrant-staged-retrieval"

In main(), register a tracer provider that points at the Phoenix OTLP endpoint, and create a Qdrant client with Cloud Inference enabled:

def main():
    tracer_provider = register(
        project_name=PROJECT_NAME,
        endpoint="http://localhost:6006/v1/traces",
    )
    tracer = tracer_provider.get_tracer(__name__)
    client = QdrantClient(
        url=os.environ["QDRANT_URL"],
        api_key=os.environ["QDRANT_API_KEY"],
        cloud_inference=True,
    )

register creates a TracerProvider that batches and exports spans to Phoenix.
cloud_inference=True delegates embedding generation to Qdrant Cloud Inference.

Define the Span Helper

A small context manager sets status, attributes, and error handling consistently, so search, qdrant_hybrid_retrieval, and select_results stay uniform.

from contextlib import contextmanager
from opentelemetry.trace import Status, StatusCode

@contextmanager
def span(tracer, name, **attributes):
    with tracer.start_as_current_span(name) as current:
        for key, value in attributes.items():
            if value is not None:
                current.set_attribute(key, value)
        try:
            yield current
        except Exception as error:
            current.set_status(Status(StatusCode.ERROR, str(error)))
            raise
        else:
            current.set_status(Status(StatusCode.OK))

Status: marks a span OK on success. On failure, marks it ERROR with the exception message.
Attributes: sets SpanAttributes.INPUT_VALUE, OUTPUT_VALUE, and custom keys such as search.candidate_limit when the span starts.

Load AG News

Load 200 documents with stable IDs. The id is stored in the payload for later diagnosis.

from datasets import load_dataset

def load_documents():
    dataset = load_dataset("fancyzhx/ag_news", split="train[:200]")
    documents = []
    for index, row in enumerate(dataset):
        documents.append(
            {
                "id": str(index),
                "text": row["text"],
            }
        )
    return documents

Index Documents with Dense and Sparse Vectors

Create one collection with a dense vector and a sparse vector. Then upsert with models.Document so Qdrant Cloud Inference embeds the text server-side. The span records document.count.

from qdrant_client import models

def index_documents(client, tracer, documents):
    with span(
        tracer,
        "index_documents",
        **{
            SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.CHAIN.value,
            "document.count": len(documents),
        },
    ):
        if client.collection_exists(COLLECTION):
            client.delete_collection(COLLECTION)
        client.create_collection(
            collection_name=COLLECTION,
            vectors_config={
                "text-dense": models.VectorParams(
                    size=EMBEDDING_DIMENSION,
                    distance=models.Distance.COSINE,
                ),
            },
            sparse_vectors_config={
                "text-sparse": models.SparseVectorParams(
                    index=models.SparseIndexParams(on_disk=False),
                ),
            },
        )
        client.upsert(
            collection_name=COLLECTION,
            points=[
                models.PointStruct(
                    id=index,
                    vector={
                        "text-dense": models.Document(
                            text=document["text"],
                            model=EMBEDDING_MODEL,
                        ),
                        "text-sparse": models.Document(
                            text=document["text"],
                            model=SPARSE_MODEL,
                        ),
                    },
                    payload=document,
                )
                for index, document in enumerate(documents)
            ],
        )

Vectors: text-dense (384 dimensions, cosine) and text-sparse (BM25).
Document API: models.Document(text=..., model=...) triggers Cloud Inference, so you don’t download embedding models locally.

Run Staged Hybrid Retrieval

The search function creates three nested spans. qdrant_hybrid_retrieval fuses dense and sparse prefetch results with RRF. select_results slices the fused list to result_limit.

def search(client, tracer, query, candidate_limit, result_limit):
    with span(
        tracer,
        "search",
        **{
            SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.CHAIN.value,
            SpanAttributes.INPUT_VALUE: query,
            SpanAttributes.INPUT_MIME_TYPE: "text/plain",
            "search.candidate_limit": candidate_limit,
            "search.result_limit": result_limit,
        },
    ) as search_span:
        with span(
            tracer,
            "qdrant_hybrid_retrieval",
            **{
                SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.RETRIEVER.value,
                SpanAttributes.INPUT_VALUE: query,
                SpanAttributes.INPUT_MIME_TYPE: "text/plain",
                "retrieval.candidate_limit": candidate_limit,
            },
        ) as retrieval_span:
            points = client.query_points(
                collection_name=COLLECTION,
                prefetch=[
                    models.Prefetch(
                        query=models.Document(text=query, model=EMBEDDING_MODEL),
                        using="text-dense",
                        limit=candidate_limit,
                    ),
                    models.Prefetch(
                        query=models.Document(text=query, model=SPARSE_MODEL),
                        using="text-sparse",
                        limit=candidate_limit,
                    ),
                ],
                query=models.FusionQuery(fusion=models.Fusion.RRF),
                limit=candidate_limit,
                with_payload=True,
            ).points
            candidates = [point.payload for point in points]
            candidate_ids = [document["id"] for document in candidates]
            retrieval_span.set_attribute(SpanAttributes.OUTPUT_VALUE, json.dumps(candidates))
            retrieval_span.set_attribute(SpanAttributes.OUTPUT_MIME_TYPE, "application/json")
            retrieval_span.set_attribute("retrieval.document_ids", candidate_ids)

        with span(
            tracer,
            "select_results",
            **{
                SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.CHAIN.value,
                SpanAttributes.INPUT_VALUE: json.dumps(candidates),
                SpanAttributes.INPUT_MIME_TYPE: "application/json",
                "selection.result_limit": result_limit,
            },
        ) as selection_span:
            results = candidates[:result_limit]
            result_ids = [document["id"] for document in results]
            selection_span.set_attribute(SpanAttributes.OUTPUT_VALUE, json.dumps(results))
            selection_span.set_attribute(SpanAttributes.OUTPUT_MIME_TYPE, "application/json")
            selection_span.set_attribute("selection.document_ids", result_ids)

        response = {
            "query": query,
            "candidate_ids": candidate_ids,
            "result_ids": result_ids,
        }
        search_span.set_attribute(SpanAttributes.OUTPUT_VALUE, json.dumps(response))
        search_span.set_attribute(SpanAttributes.OUTPUT_MIME_TYPE, "application/json")
        return response

Prefetch + RRF: each Prefetch retrieves candidate_limit hits from one vector type. Fusion.RRF merges them without additional scoring logic.
candidate_limit vs. result_limit: candidate_limit controls how many fused candidates Qdrant returns. result_limit controls how many documents remain after selection.
Span attributes: retrieval.document_ids and selection.document_ids let you compare the two stages in Phoenix. INPUT_VALUE and OUTPUT_VALUE follow OpenInference conventions and populate the Phoenix detail panes.

Full Script

qdrant_trace.py

import json
import os
from contextlib import contextmanager

from datasets import load_dataset
from openinference.semconv.trace import OpenInferenceSpanKindValues, SpanAttributes
from opentelemetry.trace import Status, StatusCode
from phoenix.otel import register
from qdrant_client import QdrantClient, models

COLLECTION = "ag-news-hybrid-tracing"
EMBEDDING_MODEL = "sentence-transformers/all-MiniLM-L6-v2"
SPARSE_MODEL = "Qdrant/bm25"
EMBEDDING_DIMENSION = 384
PROJECT_NAME = "qdrant-staged-retrieval"


@contextmanager
def span(tracer, name, **attributes):
    with tracer.start_as_current_span(name) as current:
        for key, value in attributes.items():
            if value is not None:
                current.set_attribute(key, value)
        try:
            yield current
        except Exception as error:
            current.set_status(Status(StatusCode.ERROR, str(error)))
            raise
        else:
            current.set_status(Status(StatusCode.OK))


def load_documents():
    dataset = load_dataset("fancyzhx/ag_news", split="train[:200]")
    documents = []
    for index, row in enumerate(dataset):
        documents.append(
            {
                "id": str(index),
                "text": row["text"],
            }
        )
    return documents


def index_documents(client, tracer, documents):
    with span(
        tracer,
        "index_documents",
        **{
            SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.CHAIN.value,
            "document.count": len(documents),
        },
    ):
        if client.collection_exists(COLLECTION):
            client.delete_collection(COLLECTION)
        client.create_collection(
            collection_name=COLLECTION,
            vectors_config={
                "text-dense": models.VectorParams(
                    size=EMBEDDING_DIMENSION,
                    distance=models.Distance.COSINE,
                ),
            },
            sparse_vectors_config={
                "text-sparse": models.SparseVectorParams(
                    index=models.SparseIndexParams(on_disk=False),
                ),
            },
        )
        client.upsert(
            collection_name=COLLECTION,
            points=[
                models.PointStruct(
                    id=index,
                    vector={
                        "text-dense": models.Document(
                            text=document["text"],
                            model=EMBEDDING_MODEL,
                        ),
                        "text-sparse": models.Document(
                            text=document["text"],
                            model=SPARSE_MODEL,
                        ),
                    },
                    payload=document,
                )
                for index, document in enumerate(documents)
            ],
        )


def search(client, tracer, query, candidate_limit, result_limit):
    with span(
        tracer,
        "search",
        **{
            SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.CHAIN.value,
            SpanAttributes.INPUT_VALUE: query,
            SpanAttributes.INPUT_MIME_TYPE: "text/plain",
            "search.candidate_limit": candidate_limit,
            "search.result_limit": result_limit,
        },
    ) as search_span:
        with span(
            tracer,
            "qdrant_hybrid_retrieval",
            **{
                SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.RETRIEVER.value,
                SpanAttributes.INPUT_VALUE: query,
                SpanAttributes.INPUT_MIME_TYPE: "text/plain",
                "retrieval.candidate_limit": candidate_limit,
            },
        ) as retrieval_span:
            points = client.query_points(
                collection_name=COLLECTION,
                prefetch=[
                    models.Prefetch(
                        query=models.Document(text=query, model=EMBEDDING_MODEL),
                        using="text-dense",
                        limit=candidate_limit,
                    ),
                    models.Prefetch(
                        query=models.Document(text=query, model=SPARSE_MODEL),
                        using="text-sparse",
                        limit=candidate_limit,
                    ),
                ],
                query=models.FusionQuery(fusion=models.Fusion.RRF),
                limit=candidate_limit,
                with_payload=True,
            ).points
            candidates = [point.payload for point in points]
            candidate_ids = [document["id"] for document in candidates]
            retrieval_span.set_attribute(SpanAttributes.OUTPUT_VALUE, json.dumps(candidates))
            retrieval_span.set_attribute(SpanAttributes.OUTPUT_MIME_TYPE, "application/json")
            retrieval_span.set_attribute("retrieval.document_ids", candidate_ids)

        with span(
            tracer,
            "select_results",
            **{
                SpanAttributes.OPENINFERENCE_SPAN_KIND: OpenInferenceSpanKindValues.CHAIN.value,
                SpanAttributes.INPUT_VALUE: json.dumps(candidates),
                SpanAttributes.INPUT_MIME_TYPE: "application/json",
                "selection.result_limit": result_limit,
            },
        ) as selection_span:
            results = candidates[:result_limit]
            result_ids = [document["id"] for document in results]
            selection_span.set_attribute(SpanAttributes.OUTPUT_VALUE, json.dumps(results))
            selection_span.set_attribute(SpanAttributes.OUTPUT_MIME_TYPE, "application/json")
            selection_span.set_attribute("selection.document_ids", result_ids)

        response = {
            "query": query,
            "candidate_ids": candidate_ids,
            "result_ids": result_ids,
        }
        search_span.set_attribute(SpanAttributes.OUTPUT_VALUE, json.dumps(response))
        search_span.set_attribute(SpanAttributes.OUTPUT_MIME_TYPE, "application/json")
        return response


def main():
    tracer_provider = register(
        project_name=PROJECT_NAME,
        endpoint="http://localhost:6006/v1/traces",
    )
    tracer = tracer_provider.get_tracer(__name__)
    client = QdrantClient(
        url=os.environ["QDRANT_URL"],
        api_key=os.environ["QDRANT_API_KEY"],
        cloud_inference=True,
    )

    documents = load_documents()
    index_documents(client, tracer, documents)

    response = search(client, tracer, "sports", 12, 6)
    print(json.dumps(response, indent=2))

    tracer_provider.force_flush()
    tracer_provider.shutdown()


if __name__ == "__main__":
    main()

Run

Run the script with the Qdrant environment variables set:

python qdrant_trace.py

The script downloads 200 AG News records, creates the ag-news-hybrid-tracing collection, and runs a sports query with candidate_limit=12 and result_limit=6. It prints a JSON object with the two ID lists:

{
  "query": "sports",
  "candidate_ids": ["99", "33", "157", "..."],
  "result_ids": ["99", "33", "157", "90", "66", "68"]
}

candidate_ids holds the fused RRF candidates. result_ids is the slice after selection.

Observe

Open http://localhost:6006. Every span from this guide is in the qdrant-staged-retrieval project.

Locate a Trace

Select the qdrant-staged-retrieval project, then open the Spans view.

Phoenix Spans view showing the qdrant-staged-retrieval project with the root search span

The Spans view lists every span as a row with its name, latency, and start time. Each run makes two root spans:

index_documents: records the indexing step.
search: the root of the search trace, with input sports.

Filter by name (search) or by input (sports) to find these spans.

Read the Span Tree

Select the root search span. Phoenix shows the span tree on one side and a detail pane on the other.

Expanded Phoenix trace showing the search parent with qdrant_hybrid_retrieval and select_results children

The tree shows the parent-child order and a timing waterfall:

search                     <- CHAIN, the root
|- qdrant_hybrid_retrieval <- RETRIEVER, the Qdrant call
`- select_results          <- CHAIN, the slice

qdrant_hybrid_retrieval runs the dense and sparse prefetch queries and the RRF fusion, so it is usually the slowest span. select_results only slices a list and has almost no latency.

Read a Span’s Attributes

Select a span to open its detail pane. Phoenix lists the attributes the code set, along with the OpenInference input and output. Select qdrant_hybrid_retrieval first. Its detail pane shows a RETRIEVER span kind and these attributes:

retrieval.document_ids: IDs Qdrant returned after RRF
retrieval.candidate_limit: the prefetch and fused limit sent to Qdrant
input.value: the query text (sports)
output.value: the full candidate payloads (JSON)

Then select select_results. Its detail pane shows a CHAIN span kind and these attributes:

selection.document_ids: IDs kept after candidates[:result_limit]
selection.result_limit: the slice limit
input.value: the candidate list that entered selection
output.value: the final result payloads (JSON)

The input of select_results matches the output of qdrant_hybrid_retrieval, which links the two stages into one flow. Every span also carries a status. OK means success. ERROR means failure and includes the exception message, so a red ERROR badge shows which span failed.

Find the Stage to Fix

The retrieval span shows what Qdrant found. The selection span shows what you kept. For the sports query:

retrieval.document_ids holds up to candidate_limit (12) IDs in RRF order.
selection.document_ids holds up to result_limit (6) IDs: the first six of the fused list.

Now find the document you expected to see:

If it is in retrieval.document_ids but not in selection.document_ids, raise result_limit or add a reranker instead of a hard slice.
If it is in neither list, raise candidate_limit or tune the dense and sparse queries (a different embedding model, BM25 parameters, or fusion).

To tune these settings step by step, see Qdrant’s series on tuning retrieval.

Next Steps

You now have a minimal staged tracing pattern for Qdrant hybrid search. Extend it by:

Adding a reranking span between retrieval and selection.
Recording scores as retrieval.scores.
Wrapping the inference calls in spans.

Developer Tools

MCP

LLM Providers

TypeScript

Python

Java

Platform

Vector Databases

Sandboxes

Evaluation Integrations

Coding Agents

Why Trace Hybrid Search

One Search, Two Stages

Prerequisites

Qdrant Cloud with Cloud Inference

Install

Launch Phoenix

Implementation

Set Up Tracing and Constants

Define the Span Helper

Load AG News

Index Documents with Dense and Sparse Vectors

Run Staged Hybrid Retrieval

Full Script

Run

Observe

Locate a Trace

Read the Span Tree

Read a Span’s Attributes

Find the Stage to Fix

Next Steps

Resources

​Why Trace Hybrid Search

​One Search, Two Stages

​Prerequisites

​Qdrant Cloud with Cloud Inference

​Install

​Launch Phoenix

​Implementation

​Set Up Tracing and Constants

​Define the Span Helper

​Load AG News

​Index Documents with Dense and Sparse Vectors

​Run Staged Hybrid Retrieval

​Full Script

​Run

​Observe

​Locate a Trace

​Read the Span Tree

​Read a Span’s Attributes

​Find the Stage to Fix

​Next Steps

​Resources

Why Trace Hybrid Search

One Search, Two Stages

Prerequisites

Qdrant Cloud with Cloud Inference

Install

Launch Phoenix

Implementation

Set Up Tracing and Constants

Define the Span Helper

Load AG News

Index Documents with Dense and Sparse Vectors

Run Staged Hybrid Retrieval

Full Script

Run

Observe

Locate a Trace

Read the Span Tree

Read a Span’s Attributes

Find the Stage to Fix

Next Steps

Resources
