AG2 Tracing

AG2 (formerly AutoGen) is an open-source Python framework for building multi-agent LLM applications. It centers on the ConversableAgent, which agents use to chat with one another, call tools, and coordinate through group chats and sequential conversations. Phoenix instruments AG2 through the openinference-instrumentation-ag2 package. Calling AG2Instrumentor().instrument() patches ConversableAgent and emits spans for chats, replies, and tool executions, nesting them correctly through group chat orchestration.

This instrumentor supports AG2 0.14, which is imported as autogen. AG2 1.0 uses a new middleware architecture that is not covered yet.

Install

pip install openinference-instrumentation-ag2 openinference-instrumentation-openai "ag2[openai]" arize-phoenix-otel arize-phoenix

AG2 delegates its LLM calls to the underlying model client. Pair the AG2 instrumentor with the instrumentor for that provider — openinference-instrumentation-openai in the examples below — so the LLM spans appear nested under the agent spans. If your agents call a different provider, install and register that provider’s OpenInference instrumentor instead.

Setup

Use the register function to connect your application to Phoenix. Because AG2 relies on a separate model instrumentor for LLM visibility, keep auto_instrument=True so both the AG2 and model instrumentors are activated from your installed dependencies. Connect your application to Phoenix with the register function:

Run AG2

From here you can use AG2 as normal, and Phoenix will trace each agent chat, reply, and tool call. The example below runs a single agent with the quickstart run() API:

import os
from autogen import ConversableAgent, LLMConfig

llm_config = LLMConfig(
    {"api_type": "openai", "model": "gpt-4o-mini", "api_key": os.environ["OPENAI_API_KEY"]}
)

agent = ConversableAgent(
    name="helpful_agent",
    system_message="You are a helpful assistant.",
    llm_config=llm_config,
)

response = agent.run(message="What is the capital of France?", max_turns=1, user_input=False)
response.process()

What gets traced

The instrumentor patches ConversableAgent and produces three span kinds:

AG2 method	Span name	Span kind
`initiate_chat` / `a_initiate_chat` (also used by `run` and `initiate_chats`)	`<agent>.initiate_chat`	`AGENT`
`generate_reply` / `a_generate_reply`	`<agent>.generate_reply`	`AGENT`
`execute_function` / `a_execute_function`	`<tool>`	`TOOL`

Tool spans carry tool.name, tool_call.id, tool_call.function.arguments, and tool.parameters with resolved parameter types. The instrumentor also supports suppressing tracing, propagating context attributes (using_session, using_user, using_attributes), and masking sensitive data with a TraceConfig.

Examples

Tool calling

An LLM-driven tool call, split across an agent that decides to call the tool and a user proxy that executes it — the registration split AG2 uses throughout its tools guide.

import os
from typing import Annotated

from autogen import ConversableAgent, LLMConfig
from phoenix.otel import register

# auto_instrument activates the installed AG2 and OpenAI OpenInference instrumentors
register(project_name="ag2-tool-calling", auto_instrument=True)

llm_config = LLMConfig(
    {"api_type": "openai", "model": "gpt-4o-mini", "api_key": os.environ["OPENAI_API_KEY"]}
)

RATES = {("USD", "EUR"): 0.92, ("EUR", "USD"): 1.09, ("USD", "JPY"): 157.0}

assistant = ConversableAgent(
    name="assistant",
    system_message=(
        "You convert currencies using the provided tool. Once you have the answer, "
        "state it and reply TERMINATE."
    ),
    llm_config=llm_config,
)
user_proxy = ConversableAgent(
    name="user_proxy",
    human_input_mode="NEVER",
    is_termination_msg=lambda message: "TERMINATE" in (message.get("content") or ""),
)


@user_proxy.register_for_execution()
@assistant.register_for_llm(description="Convert an amount between two currencies.")
def get_exchange_rate(
    amount: Annotated[float, "The amount to convert"],
    base: Annotated[str, "The currency code to convert from, e.g. USD"],
    quote: Annotated[str, "The currency code to convert to, e.g. EUR"],
) -> str:
    rate = RATES.get((base.upper(), quote.upper()))
    if rate is None:
        return f"No exchange rate available for {base} to {quote}."
    return f"{amount} {base.upper()} is {amount * rate:.2f} {quote.upper()}."


user_proxy.initiate_chat(assistant, message="How much is 250 USD in EUR?", max_turns=4)

Group chat

An AutoPattern group chat where a manager routes between specialist agents. The trace shows the manager’s speaker-selection decisions interleaved with each specialist’s reply:

_User.initiate_chat [AGENT]
  chat_manager.generate_reply [AGENT]
    finance_bot.generate_reply [AGENT]
      ChatCompletion [LLM]
    checking_agent.initiate_chat [AGENT]
      speaker_selection_agent.generate_reply [AGENT]
        ChatCompletion [LLM]
    summary_bot.generate_reply [AGENT]
      ChatCompletion [LLM]

import os
from typing import Any

from autogen import ConversableAgent, LLMConfig
from autogen.agentchat import initiate_group_chat
from autogen.agentchat.group.patterns import AutoPattern
from phoenix.otel import register

# auto_instrument activates the installed AG2 and OpenAI OpenInference instrumentors
register(project_name="ag2-group-chat", auto_instrument=True)

llm_config = LLMConfig(
    {"api_type": "openai", "model": "gpt-4o-mini", "api_key": os.environ["OPENAI_API_KEY"]}
)

TRANSACTIONS = [
    "Transaction: $500 to Staples. Memo: Quarterly supplies.",
    "Transaction: $23,000 to CyberSins Ltd. Memo: Confidential.",
    "Transaction: $1,500 to Initech. Memo: Routine payment.",
]

FINANCE_SYSTEM_MESSAGE = """
You are a financial compliance assistant reviewing transactions.
Flag a transaction as suspicious when the amount is over $10,000 or the memo is vague.
Approve the rest. Review every transaction in one reply, then hand off to summary_bot.
"""

SUMMARY_SYSTEM_MESSAGE = """
You are a financial summary assistant. Summarize the reviewed transactions as a markdown
table with Vendor, Memo, Amount, and Status columns, followed by the approved and
rejected counts. End your reply with "==== SUMMARY GENERATED ====".
"""


def is_termination_msg(message: dict[str, Any]) -> bool:
    return "==== SUMMARY GENERATED ====" in (message.get("content") or "")


finance_bot = ConversableAgent(
    name="finance_bot", system_message=FINANCE_SYSTEM_MESSAGE, llm_config=llm_config
)
summary_bot = ConversableAgent(
    name="summary_bot", system_message=SUMMARY_SYSTEM_MESSAGE, llm_config=llm_config
)

pattern = AutoPattern(
    initial_agent=finance_bot,
    agents=[finance_bot, summary_bot],
    group_manager_args={"llm_config": llm_config, "is_termination_msg": is_termination_msg},
)

result, _, _ = initiate_group_chat(
    pattern=pattern,
    messages="Please review these transactions:\n" + "\n".join(TRANSACTIONS),
    max_rounds=6,
)

Sequential chats

initiate_chats runs a queue of chats in order, passing each chat’s summary into the next as carryover. Each chat in the queue gets its own AGENT span, so the trace shows the whole pipeline:

import os

from autogen import ConversableAgent, LLMConfig
from phoenix.otel import register

# auto_instrument activates the installed AG2 and OpenAI OpenInference instrumentors
register(project_name="ag2-sequential-chats", auto_instrument=True)

llm_config = LLMConfig(
    {"api_type": "openai", "model": "gpt-4o-mini", "api_key": os.environ["OPENAI_API_KEY"]}
)

researcher = ConversableAgent(
    name="researcher",
    system_message="List the key facts about the topic in three short bullets.",
    llm_config=llm_config,
)
writer = ConversableAgent(
    name="writer",
    system_message="Turn the research you are given into a two-sentence summary.",
    llm_config=llm_config,
)
editor = ConversableAgent(
    name="editor",
    system_message="Tighten the summary you are given into a single sentence.",
    llm_config=llm_config,
)
coordinator = ConversableAgent(name="coordinator", human_input_mode="NEVER")

# Each chat's summary is carried into the next chat in the queue.
results = coordinator.initiate_chats(
    [
        {
            "recipient": researcher,
            "message": "Research the benefits of tracing LLM applications.",
            "max_turns": 1,
            "summary_method": "last_msg",
        },
        {
            "recipient": writer,
            "message": "Write the summary.",
            "max_turns": 1,
            "summary_method": "last_msg",
        },
        {
            "recipient": editor,
            "message": "Edit it down.",
            "max_turns": 1,
            "summary_method": "last_msg",
        },
    ]
)

Structured outputs

Passing a pydantic model as response_format on LLMConfig makes the agent reply with JSON matching that schema. The agent span’s output value is the serialized model, so the trace shows exactly what downstream code will parse:

import json
import os

from autogen import ConversableAgent, LLMConfig
from phoenix.otel import register
from pydantic import BaseModel

# auto_instrument activates the installed AG2 and OpenAI OpenInference instrumentors
register(project_name="ag2-structured-output", auto_instrument=True)


class TransactionAuditEntry(BaseModel):
    vendor: str
    amount: float
    memo: str
    status: str
    reason: str


class AuditLogSummary(BaseModel):
    total_transactions: int
    approved_count: int
    rejected_count: int
    transactions: list[TransactionAuditEntry]


llm_config = LLMConfig(
    {"api_type": "openai", "model": "gpt-4o-mini", "api_key": os.environ["OPENAI_API_KEY"]},
    response_format=AuditLogSummary,
)

TRANSACTIONS = """
Transaction: $500 to Staples. Memo: Quarterly supplies.
Transaction: $23,000 to CyberSins Ltd. Memo: Confidential.
Transaction: $1,500 to Initech. Memo: Routine payment.
"""

summary_bot = ConversableAgent(
    name="summary_bot",
    system_message=(
        "You are a financial summary assistant that generates audit logs. Reject "
        "transactions over $10,000 or with a vague memo, and approve the rest."
    ),
    llm_config=llm_config,
)

response = summary_bot.run(
    message=f"Produce the audit log for these transactions:\n{TRANSACTIONS}",
    max_turns=1,
    user_input=False,
)
response.process()

audit_log = AuditLogSummary.model_validate_json(response.messages[-1]["content"])
print(json.dumps(audit_log.model_dump(), indent=2))

Observe

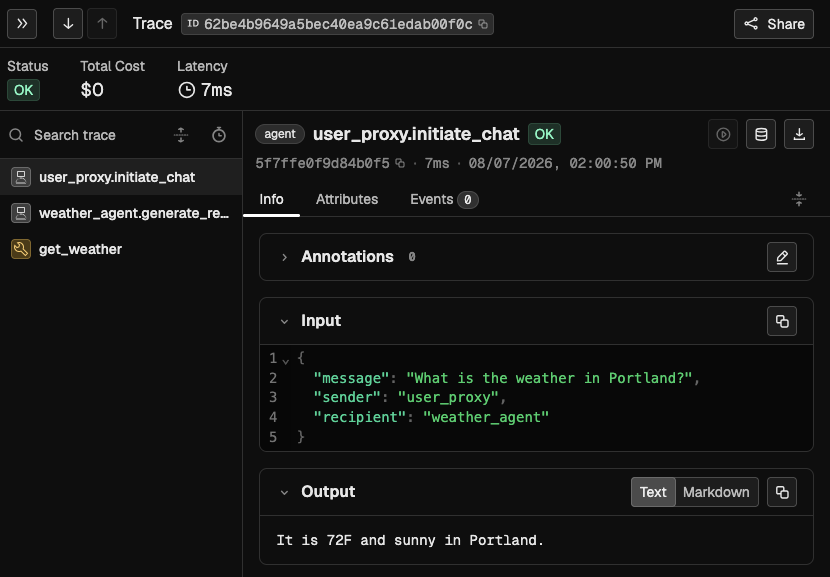

Now that you have tracing set up, all AG2 agent chats, replies, and tool calls are streamed to Phoenix for observability and evaluation. Each ConversableAgent chat and reply appears as an AGENT span, with tool executions nested underneath as TOOL spans.

Migrating from `openinference-instrumentation-autogen`

openinference-instrumentation-ag2 replaces openinference-instrumentation-autogen. The autogen package is now a thin, deprecated compatibility facade that delegates to AG2Instrumentor. Move to openinference-instrumentation-ag2 and use AG2Instrumentor directly.
