Setup

To first get started, you will first Configure AI Providers. In the playground view, create a valid prompt for the LLM and click Run on the top right (or the mod + enter) If successful you should see the LLM output stream out in the Output section of the UI.

​
Prompt Editor

The prompt editor (typically on the left side of the screen) is where you define the Prompts Concepts. You select the template language (mustache or** f-string**) on the toolbar. Whenever you type a variable placeholder in the prompt (say {{question}} for mustache), the variable to fill will show up in the inputs section. Input variables must either be filled in by hand or can be filled in via a dataset (where each row has key / value pairs for the input).

​

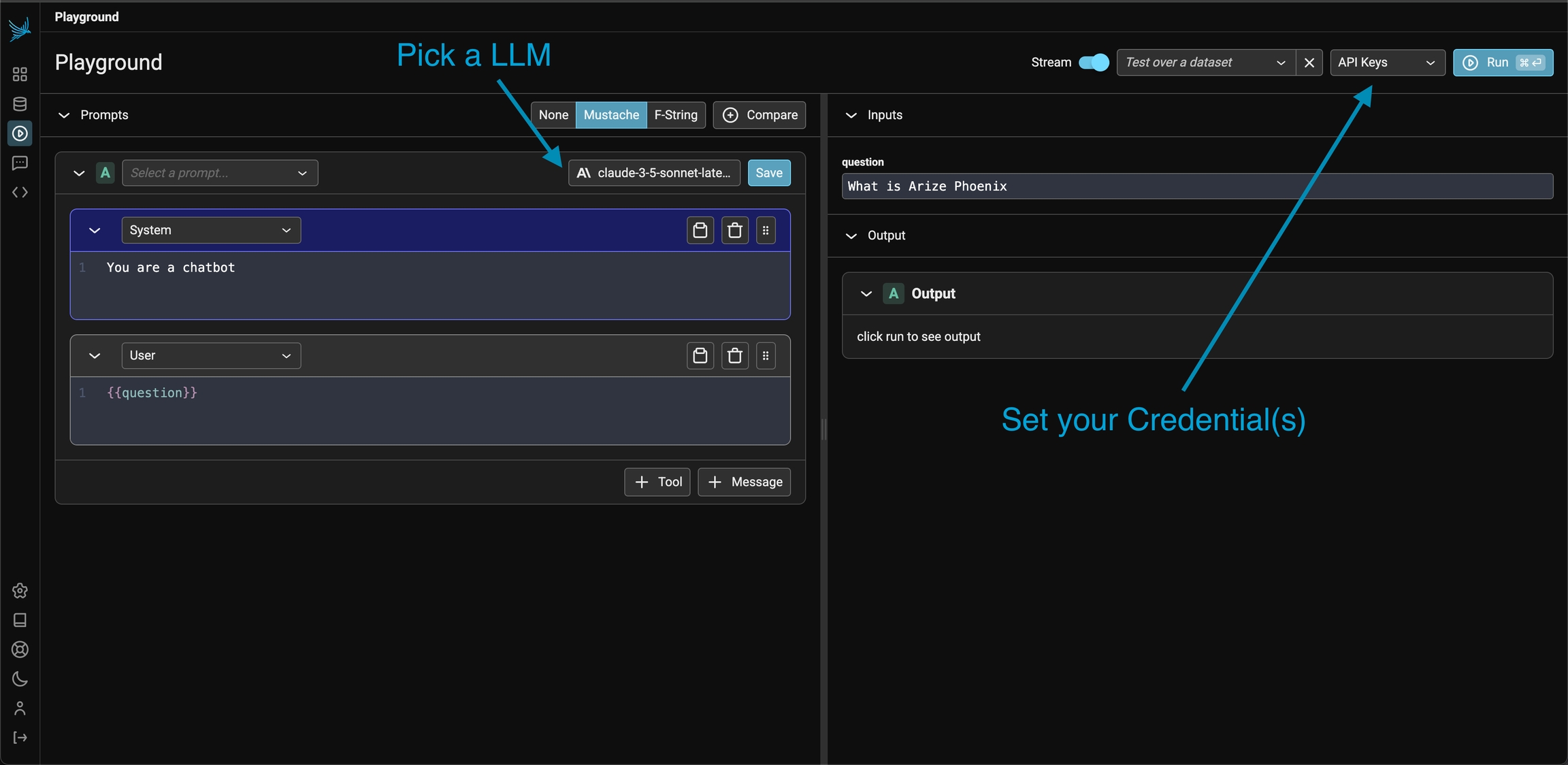

Model Configuration

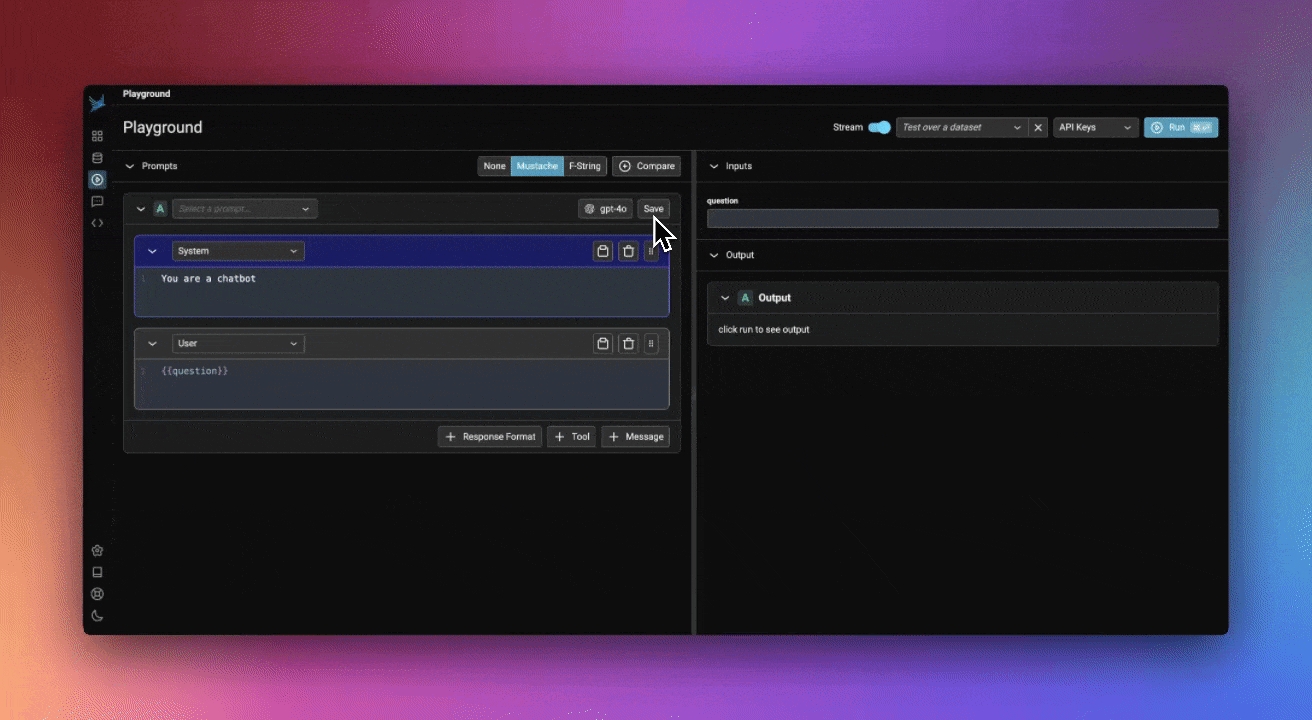

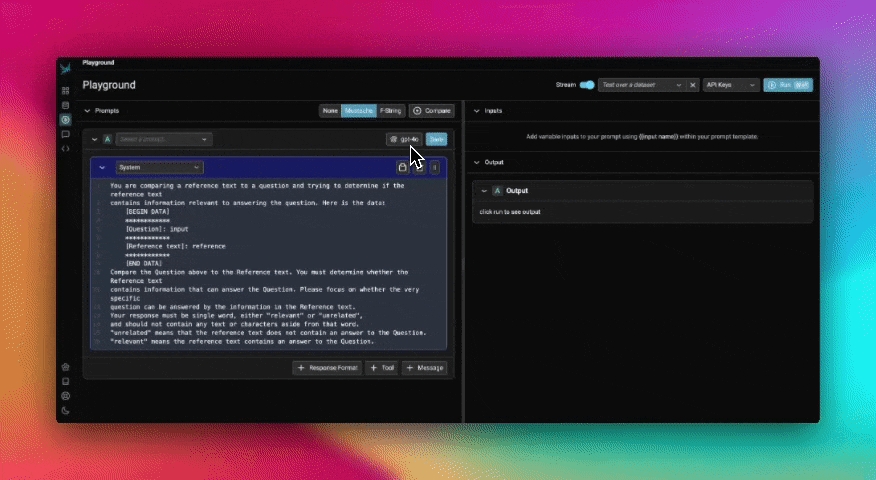

Every prompt instance can be configured to use a specific LLM and set of invocation parameters. Click on the model configuration button at the top of the prompt editor and configure your LLM of choice. Click on the “save as default” option to make your configuration sticky across playground sessions.
For OpenAI and Azure OpenAI models, you can select the OpenAI API type in the model configuration panel. Choose Chat Completions (chat.completions.create) or Responses (responses.create) depending on the model and feature set you need.

​

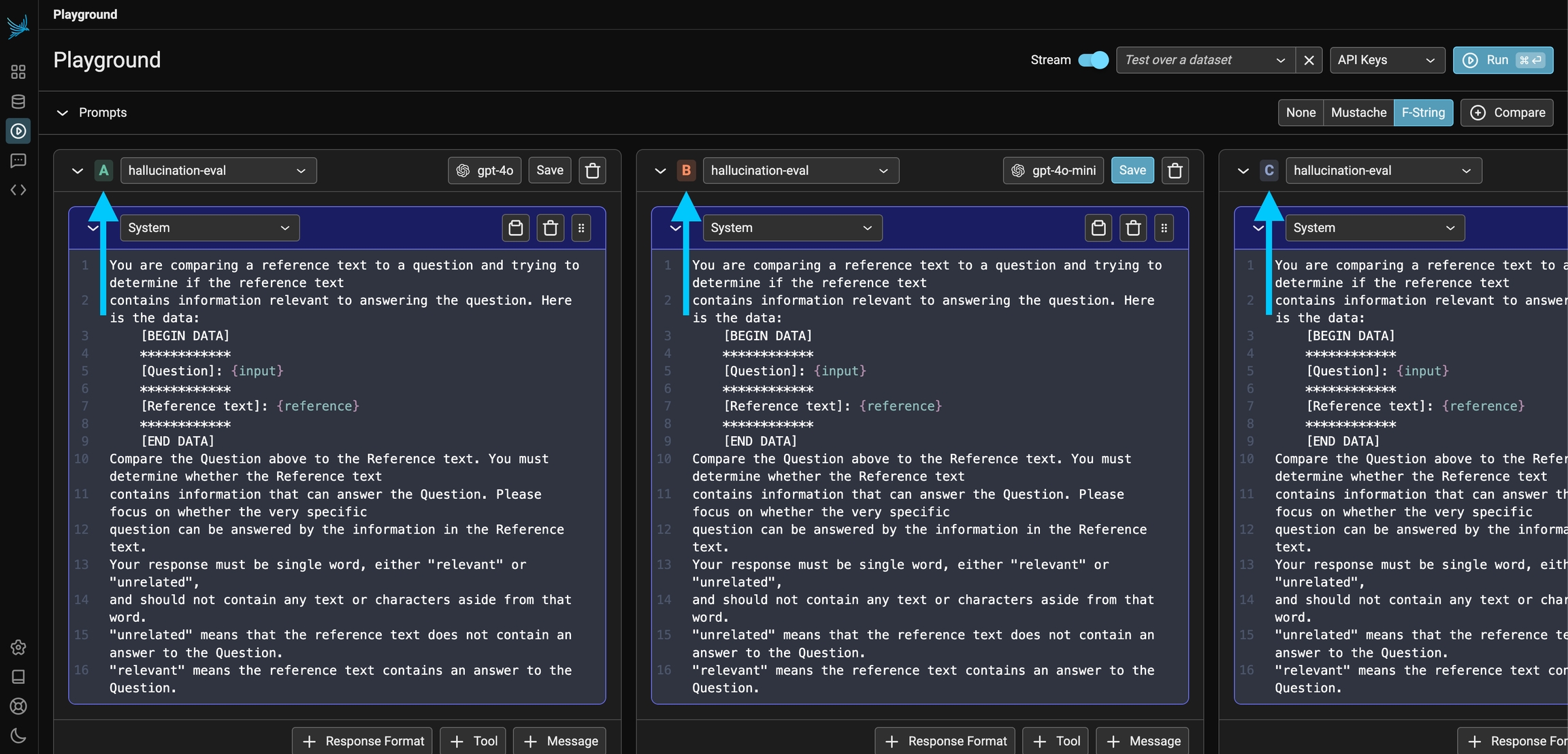

Comparing Prompts

The Prompt Playground offers the capability to compare multiple prompt variants directly within the playground. Simply click the + Compare button at the top of the first prompt to create duplicate instances. Each prompt variant manages its own independent template, model, and parameters. This allows you to quickly compare prompts (labeled A, B, C, and D in the UI) and run experiments to determine which prompt and model configuration is optimal for the given task.

​

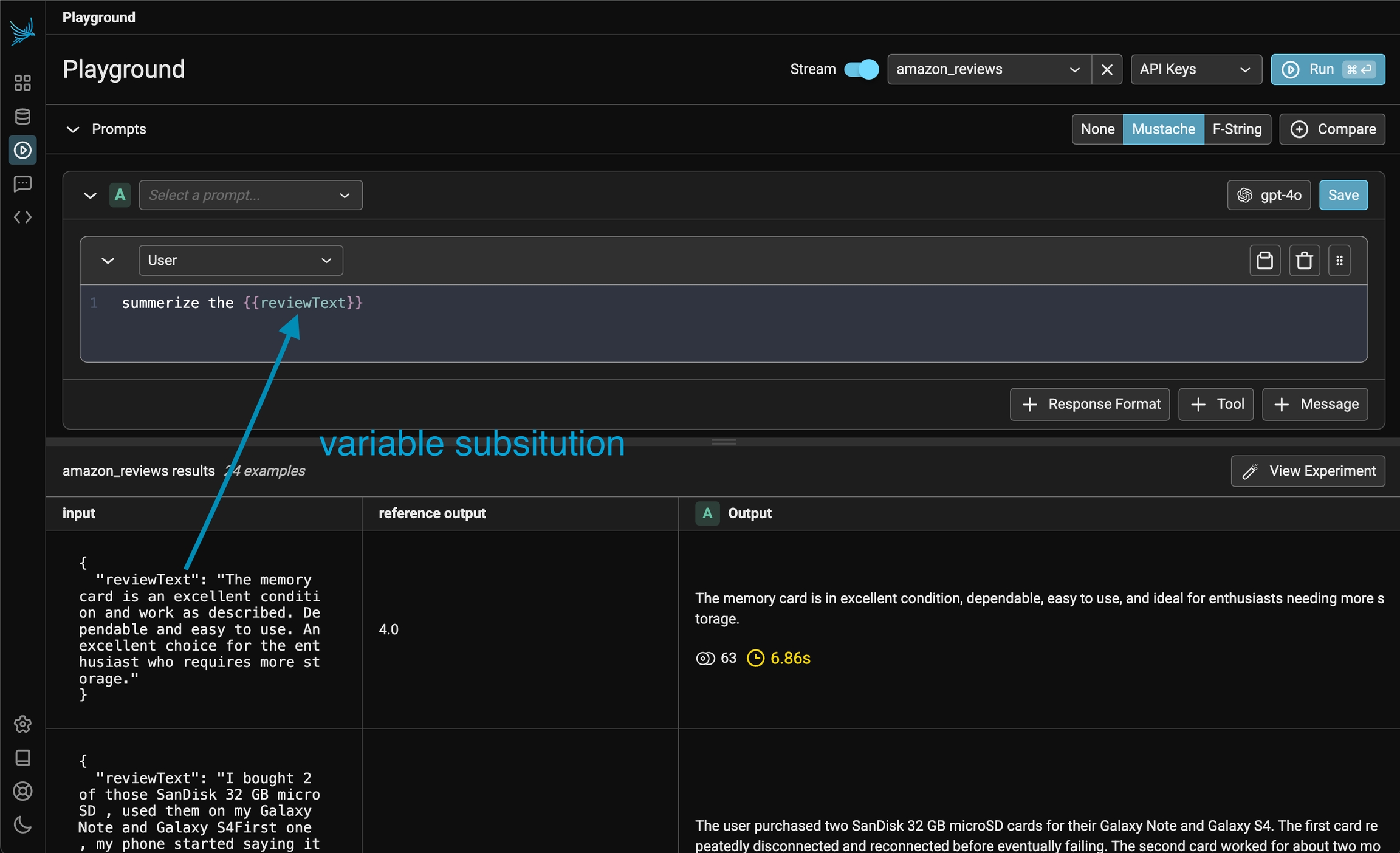

Using Datasets with Prompts

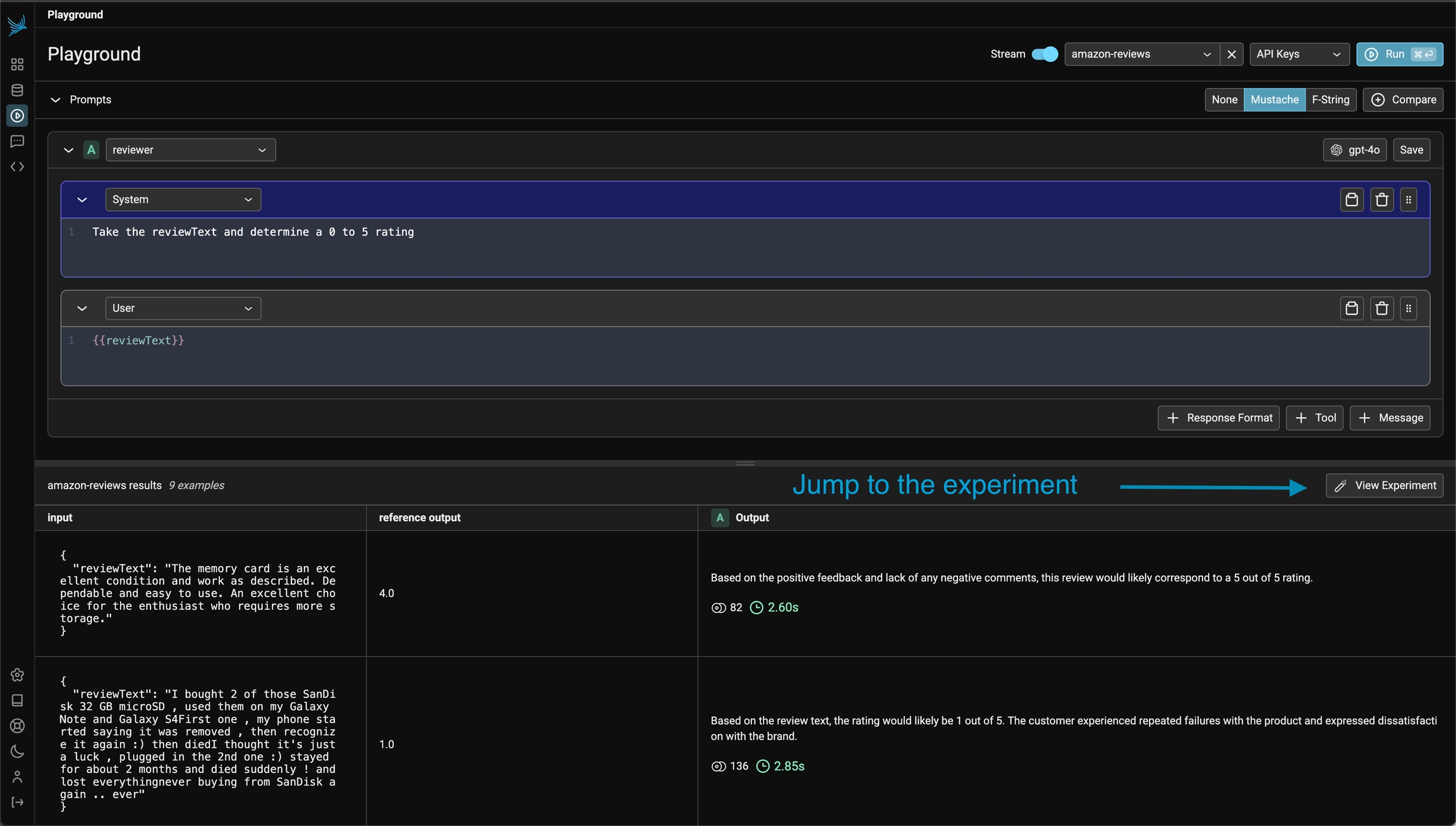

Phoenix lets you run a prompt (or multiple prompts) on a dataset. Simply load a dataset containing the input variables you want to use in your prompt template. When you click Run, Phoenix will apply each configured prompt to every example in the dataset, invoking the LLM for all possible prompt-example combinations. The result of your playground runs will be tracked as an experiment under the loaded dataset (see Playground Traces)

​
Configuring Dataset Paths

By default, the playground reads template variables from input, so {question} will resolve against input.question automatically. If your dataset examples store inputs under a different nested object, you can configure where the playground should read prompt variables from:
  1. Load a dataset
  2. Click the settings button (gear icon) in the experiment toolbar next to the dataset selector
  3. Set the Prompt variable path to the dot-notation path that contains your template variables (e.g., input or payload.inputs)
When set, Phoenix will resolve template variables against that object. For example, if your prompt uses {question} and your dataset example looks like:
{
  "input": {
    "question": "What is the weather in San Francisco?"
  }
}
You can leave the default prompt variable path as input. If you want to reference root-level fields directly (for example {input.question} and {output.response}), clear the prompt variable path so variables resolve from the root object. With this dataset example:
{
  "input": {
    "question": "What is the weather in San Francisco?"
  },
  "output": {
    "response": "I can help with that."
  }
}
You can use template variables like {input.question} and {output.response} in your prompt.

​
Appending Conversation History

When running experiments over datasets, you can append conversation messages from your dataset examples to the prompt. This is useful for:
  • A/B testing models: Compare how different models respond to the same conversation history
  • Testing system prompts: Evaluate different system prompts against identical user conversations
  • Multi-turn conversation experiments: Run experiments using existing conversation threads

​
Setting the Appended Messages Path

To use this feature:
  1. Load a dataset that contains conversation messages in OpenAI format
  2. Click the settings button (gear icon) in the experiment toolbar next to the dataset selector
  3. Enter the dot-notation path to the messages array in your dataset examples (e.g., messages or input.messages)
When you run the experiment, messages at the specified path will be appended to the end of your prompt template after template variables are applied. This makes it easy to keep your system prompt and initial instructions in the template while replaying real conversation history from the dataset.

​
Dataset Format

Your dataset examples should contain messages in OpenAI’s chat format:
{
  "messages": [
    {"role": "user", "content": "What is the weather in San Francisco?"},
    {"role": "assistant", "content": "Let me check that for you."},
    {"role": "user", "content": "Thanks! Also, what about New York?"}
  ]
}
The supported message roles are:
  • user - User messages
  • assistant - Assistant/AI responses
  • system - System messages
  • tool - Tool response messages (with tool_call_id)
For nested structures, use dot-notation paths:
{
  "input": {
    "messages": [
      {"role": "user", "content": "Hello!"}
    ]
  }
}
In this case, set the path to input.messages.

​
Example: A/B Testing System Prompts

  1. Create a dataset with conversation examples (user messages and expected context)
  2. In the playground, configure two prompt variants (A and B) with different system prompts
  3. Load your dataset and set the appended messages path to messages
  4. Run the experiment to compare how each system prompt handles the same conversations
This approach lets you systematically evaluate prompt changes across many real-world conversation scenarios.

​

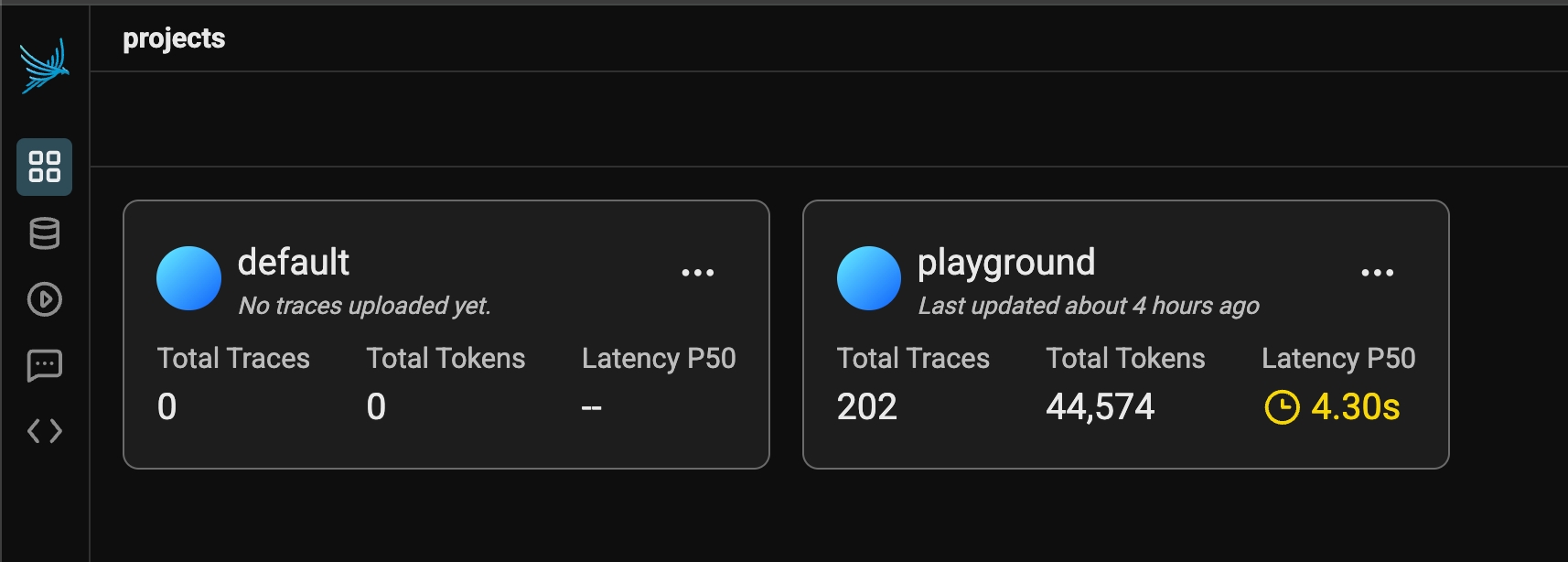

Playground Traces

All invocations of an LLM via the playground is recorded for analysis, annotations, evaluations, and dataset curation. If you simply run an LLM in the playground using the free form inputs (e.g. not using a dataset), Your spans will be recorded in a project aptly titled “playground”.
If however you run a prompt over dataset examples, the outputs and spans from your playground runs will be captured as an experiment. Each experiment will be named according to the prompt you ran the experiment over.
